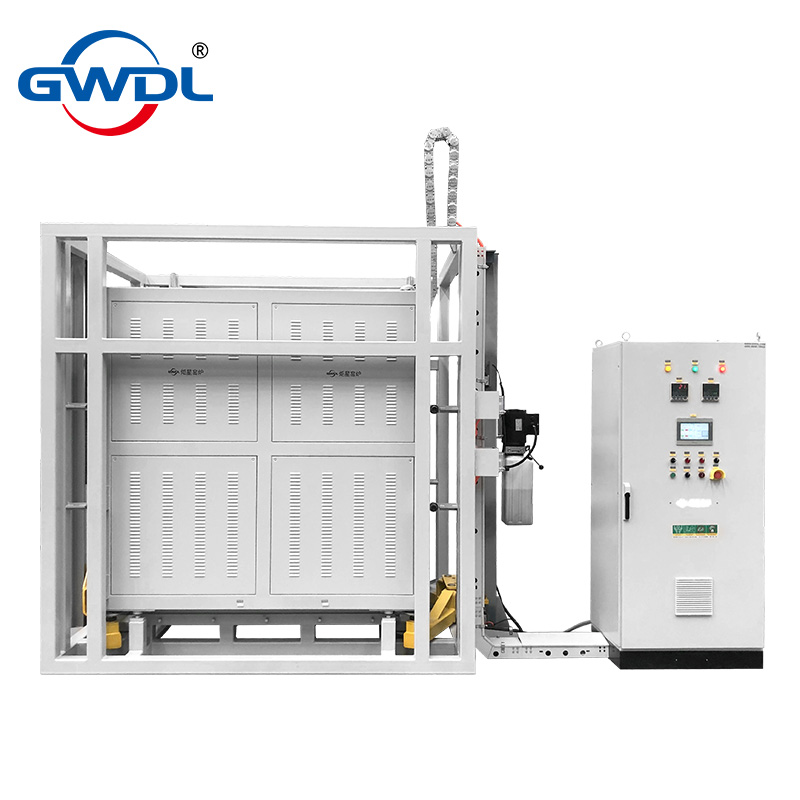

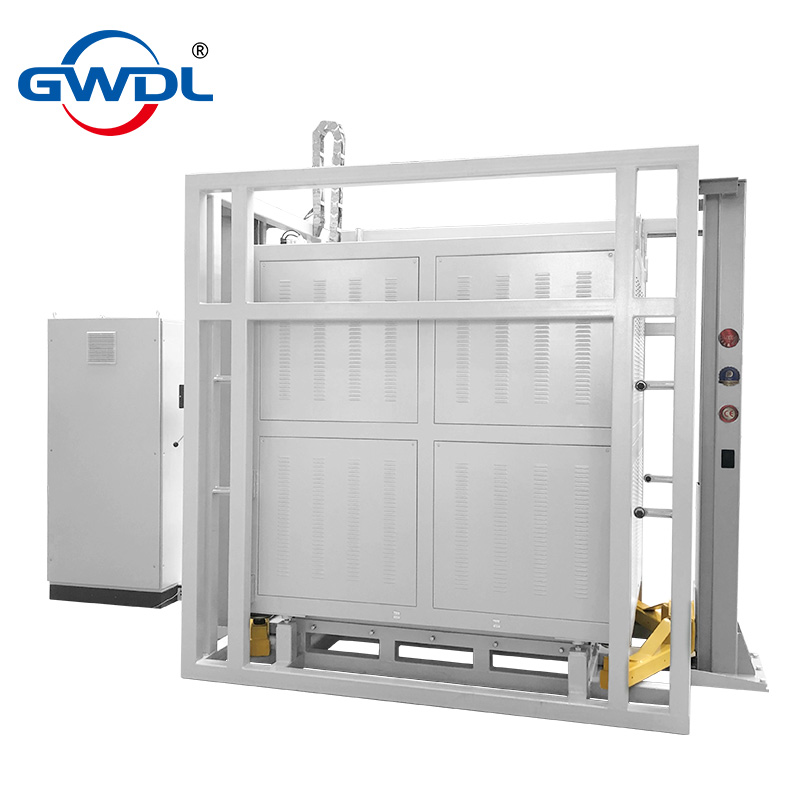

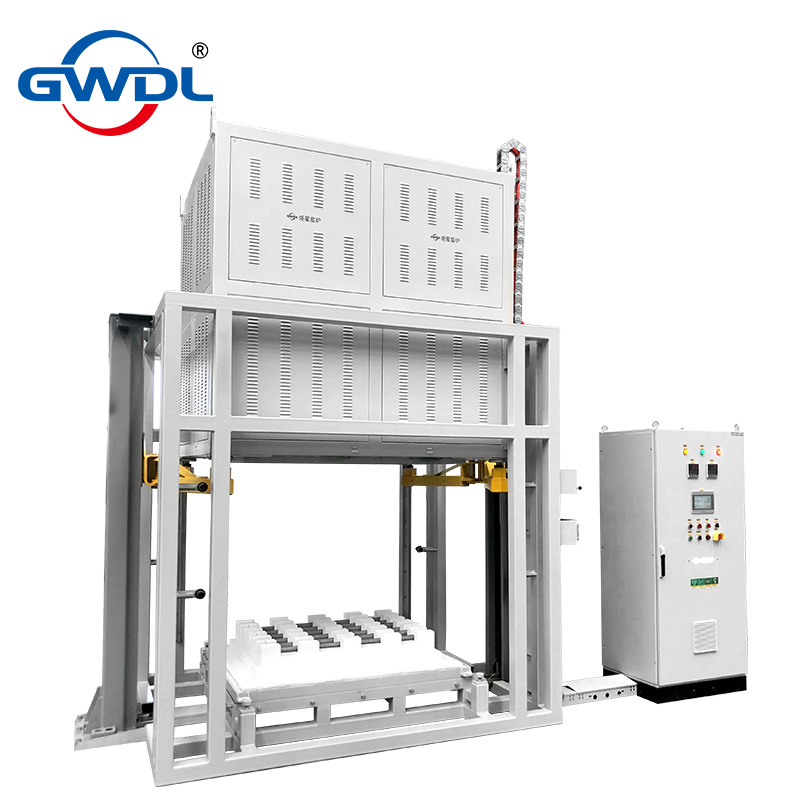

GWL-1200YS钟罩炉
  • GWL-1200YS钟罩炉
  • GWL-1200YS钟罩炉
产品名称:GWL-1200YS钟罩炉 型号:GWL-1200YS钟罩炉 产品特点:GWL-1200YS钟罩炉

GWDL钟罩炉

GWDL钟罩炉



 类别category

参数

1300度(℃)

最高使用温度

Maximum service temperature

1280(℃)

可长期使用温度

Can be used for a long time temperature

1250(℃)

控制范围为

Control range is

80-1200(℃)

测温元件

Temperature measuring element

热电偶分度号K,测温范围0-1320

Thermocouple index number K, temperature range 0-1320 degrees

发热元件装位置

Location of heating element

四周布置发热元件

Heating elements are arranged around

控温精度

Temperature control accuracy

±1度(集成化电路控制,无超调现象)

±1 degree (integrated circuit control, no overshoot)

炉温均匀性

Furnace temperature uniformity

±5(℃)

升温速率

Heating rate

升温速率可自由调节,调节范围:最快升温速率每分钟30度(30/min)、最慢升温速率每小时1度(1/h

The heating rate can be freely adjusted, the adjustment range: the fastest heating rate is 30 degrees per minute (30 degrees /min), the slowest heating rate is 1 degree per hour (1 degree /h).

发热元件

Heating element

采用U型等直径硅碳棒,硅碳棒是选用高纯度a-SiC为主要原料制成的非金属高温电热元件,它具有升温快、热效率高、寿命长、高温下不易变形,安装操作维修简便、温度可达1500度等特点。Silicon carbon rod is used as heating element. U-shaped silicon carbon rod with equal diameter, silicon carbon rod is a high-purity A-sic as the main raw material made of non-metallic high-temperature electric heating element, it has fast heating, high thermal efficiency, long life, not easy to deformation at high temperature, easy installation, operation and maintenance, temperature up to 1500 degrees.

炉体

Furnace body

炉体采用数控机床加工,经抛光、打磨、酸洗、磷化、喷涂塑粉、高温烘烤等制作而成,双色搭配,外观新颖美观,具备了抗氧化、耐酸碱、耐腐蚀、耐高温、容易清理等优点

The furnace body is processed by CNC machine tool, and is made by polishing, polishing, pickling, phosphating, spraying plastic powder, high temperature baking, etc. The two-color combination has a novel and beautiful appearance, and has the advantages of oxidation resistance, acid and alkali resistance, corrosion resistance, high temperature resistance, and easy cleaning

炉体结构

Furnace structure

电炉炉体采用了先进的风冷双层炉体结构,有效的风冷导向隔板使炉壳整体冷风循环,最终冷却发热元件导电片后排出炉体,避免了发热元件导电片的高温氧化;保证了良好的工作环境

The electric furnace adopts the international advanced air-cooled double-layer furnace structure, and the effective air-cooled guide partition circulates the whole cold air of the furnace shell, and finally cools the conductive sheet of the heating element and exits the furnace body, avoiding the high-temperature oxidation of the conductive sheet of the heating element. Ensure a good working environment

炉体升降

Furnace body lifting

炉体的升降采用双油缸液压升降,液压系统并且具备了停电后手动下降按钮,和升起时防止下降机械锁定安全扣。The lifting of the furnace body adopts double cylinder hydraulic lifting, and the hydraulic system is equipped with a manual lowering button after power failure, and a mechanical locking safety buckle to prevent falling when rising

装料台与炉口结合

The loading table is combined with the furnace

炉体开启方式为上炉体垂直升降;装料台与炉口有3-4层锥度台阶软密封,台阶上布置有弹性高温密封条,能有效的吸收炉口与装料台耐火材料的膨胀;并在装料台四周设置有密封沙结构。The opening mode of the furnace body is vertical lifting of the upper furnace body; There are 3-4 layers of taper step soft seal between the charging platform and the loading platform. The elastic high temperature seal strip is arranged on the step, which can effectively absorb the expansion of the refractory materials of the charging platform and the furnace. And a sealing sand structure is arranged around the loading table

装料台耐材

Loading table resistant material

装料台采用真空成型高纯氧化铝聚轻材料与高纯氧化铝空心球板组合制作而成,既保证了保温性能又保证了承重性能。

The charging table is made of vacuum forming high purity alumina poly light material and high purity alumina hollow ball plate, which not only ensures the heat preservation performance but also ensures the load-bearing performance

炉膛耐火材料

Furnace refractory

炉衬使用真空成型高纯氧化铝聚轻材料制作而成,取放物料易碰和载重位置(炉口、炉底)采用轻质空心球氧化铝板,使用温度高,蓄热量小,耐急热急冷、不裂缝、不掉渣、保温性能好(节能效果是老式电炉的80%以上)The lining of the furnace is made of vacuum forming high-purity aluminum oxide polymer material, the material is easy to touch and the load position (furnace mouth, furnace bottom) is made of lightweight aluminum oxide plate, the use of high temperature, small heat storage, resistance to urgent heating and cooling, no cracks, no slag, good thermal insulation performance (energy-saving effect is more than 80% of the old electric furnace).

保温材料

Thermal insulation material

采用三层保温,分别为:硅酸铝纤维板、氧化铝纤维板、氧化铝(多晶)纤维板,节能效果是老式电炉的80%以上。

The use of three layers of insulation, respectively: aluminum silicate fiberboard, alumina fiberboard, alumina (polycrystalline) fiberboard, energy saving effect is more than 80% of the old electric furnace.

炉体外壳温度

Furnace shell temperature

长期使用不停炉,外壳温度小于45

Long-term use of non-stop furnace, shell temperature is less than 45 degrees

保护Protection

采用集成化模块控制单元,控制精度准确,并设计了双回路控制和双回路保护,具备了过冲、超调、欠调、段偶、缺相、超压、超流、超温、电流反馈、软启动等保护

The integrated module control unit is adopted, the control precision is accurate, and the double circuit control and double circuit protection are designed, with overshoot, overshoot, undershoot, segment pair, phase loss, overvoltage, overcurrent, overtemperature, current feedback, soft start and other protection

控制

Controls

采用闭环技术可控硅模块触发控制,移相触发控制或者过零触发方式,输出电压、电流或功率连续可调,具有恒电压、恒电流或恒功率的特性;电流环为内环,电压环为外环,在突加负载或负载电流超过限流值时,限制调压器的输出电流在额定电流范围内,确保输出和调压器正常工作;同时电压环也参与调节,使调压器的输出电流被限制在额定电流范围内,在有充分调节余量的前提下维持输出电流及电压的恒定;从而到达保护发热元件避免过大电流、电压的冲击,达到安全可靠的控制效果及控制精度。Use closed-loop technology thyristor module trigger control, phase-shift trigger control or zero-crossing trigger mode, the output voltage, current or power is continuously adjustable, with constant voltage, constant current or constant power characteristics; The current ring is the inner ring and the voltage ring is the outer ring. When the load is suddenly added or the load current exceeds the current limit value, the output current of the voltage regulator is limited to the rated current range to ensure that the output and voltage regulator work normally. At the same time, the voltage ring is also involved in the regulation, so that the output current of the regulator is limited within the rated current range, and the output current and voltage are maintained under the premise of sufficient adjustment margin. Thus to protect the heating element from excessive current and voltage impact, to achieve safe and reliable control effect and control accuracy.

触摸屏读写参数

Touch screen read and write parameters

采用7英寸触摸屏时实读写储存温度、温度段号、段时间、剩余时间、输出功率百分比、电压、电流等

When the 7-inch touch screen is used, the real read and write storage temperature, temperature segment number, segment time, remaining time, output power percentage, voltage, current, etc

温度曲线设定

Temperature curve setting

采用导电FP03智能温度控制仪,备标准PID、人工智能调节APIDMPT等多种调节方式,具有自整定、自学习功能,无超调及无欠调的优良控制特性具备40段程序控制功能,可实现任意斜率的升、降温控制,具有跳转(循环)、运行、暂停及停止等可编程/可操作命令,并允许在程序的控制运行中随时修改程序;采用具备曲线拟合功能的人工智能调节算法,能获得光滑平顺的曲线控制效果;

Using Japan's conductive FP03 intelligent temperature controller, standard PID, artificial intelligence to adjust APID or MPT and other adjustment methods, with self-tuning, self-learning function, no overshoot and no undermodulation of excellent control characteristics, with 40 segment program control function, can achieve any slope of rise and drop temperature control. It has programmable/operable commands such as jump (loop), run, pause and stop, and allows modification of the program at any time during the control operation of the program; Using artificial intelligence adjustment algorithm with curve fitting function, smooth curve control effect can be obtained.

随机配件Spare parts

发热原件两支、棒具两套。 Two heating components and two sets of rods

保修范围及期限Warranty coverage and duration

电炉免费保修一年,发热元件不保修(三个月内自然损坏免费更换)Electric furnace free warranty for one year, heating components are not guaranteed (free replacement of natural damage within three months)

装箱清单

Packing list

电炉一台,发热原件两支、棒具两套,高温手套一副,说明书一份,合格证一份,验收报告(出厂检测报告)一份,销售送货单一份。One electric furnace, two heating components, two sets of rods, one pair of high temperature gloves, one manual, one certificate, one acceptance report (factory inspection report), and one sales delivery.

发货事项

Delivery item

木箱包装,汽车、铁路、轮船(外贸出口)、空运(外贸出口)运输 Packed in wooden cases, transported by car, rail, ship (export), air (export)

三、电炉电源明细

名称name

规格型号Specification and model

炉膛尺寸

Furnace size

电源

Power

功率kw

重量(kg) weight

钟罩炉

GWL-1200YS1100/800/1100

W1100×D800×H1100

AC380V,50HZ

80

21000
